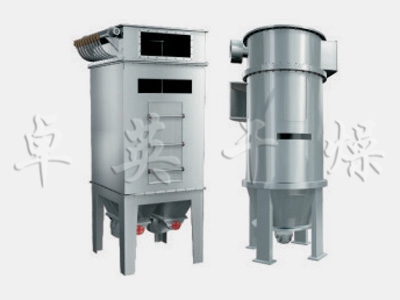

MC series pulse bag filter
MC series pulse bag filter
Detailed description
Overview:
MC-Ⅱ square pulse bag filter is in the MC-Ⅰ type, based on the changes made by the improvement, in addition to its high removal efficiency with type Ⅰ, handling large amount of wind, stable performance, easy operation and maintenance, etc., but also with than the type Ⅰ use of effective, easy to plot powder, and wide range of applications, widely used in food grain, feed, metallurgy and chemical industry, building materials, pharmaceuticals and other industries ventilation and dust removal and dust collection.
Technical parameters:
W×H
Parameters / Model
MC24
MC36
MC48
MC60
MC72
MC84
MC96
MC120
Filter area (m2 )
18
27
36
45
54
63
72
90
Bag number (只)
24
36
48
60
72
84
96
120
Filtration velocity (L/m2.s)
20-40
20-40
20-40
20-40
20-40
20-40
20-40
20-40
Filter air volume (m3/h)
1300-2600
1950-3900
2600-5200
3240-6480
3900-7800
4550-9100
5200-10500
6500-13000
Maximum dimensions (mm)
length L
1000
1400
1800
2200
2600
3000
3560
4360
1450×3700
1450×3660
1450×4100
cleaning device
Pulse valve number
4
6
8
10
12
14
16
20
Consumption of compressed air volume (m3)
0.07-0.30
0.11-0.40
0.15-0.50
0.18-0.60
0.22-0.60
0.25-0.90
0.29-0.90
0.37-0.90
Air pressure (kg/cm2)
5-7
Parameters / Model
MC48
MC60
MC72
MC84
MC96
MC108
MC120
A
3530
3530
3530
3530
3530
3530
3530
B
3287
3287
3287
3287
3287
3287
3287
C
2552
2552
2552
2552
2552
2552
2552
D
1160
2260
1160
1160
1160
1160
1160
E
1350
1650
1950
2250
1350
2850
3150
F
1350
1350
1350
1350
1350
1350
1350
G
635
635
635
635
635
635
635
H
325
475
625
775
925
1075
1225
I
1586
1586
1586
1586
1586
1586
1486
J
790
790
790
790
850
850
850
K
824
824
824
824
880
880
880
M×N
400×500
500×500
600×500
700×600
700×600
800×600
800×600
P×Q
432×530
530×530
630×530
728×630
728×630
832×630
832×630
R×S
1050×1050
1350×1050
1650×1050
1950×1050
2250×1050
2250×1050
2850×1050
