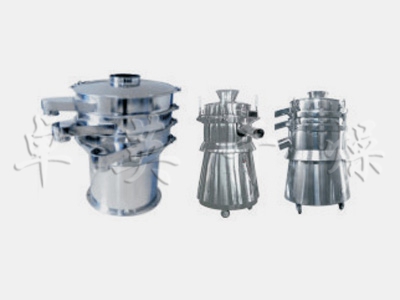

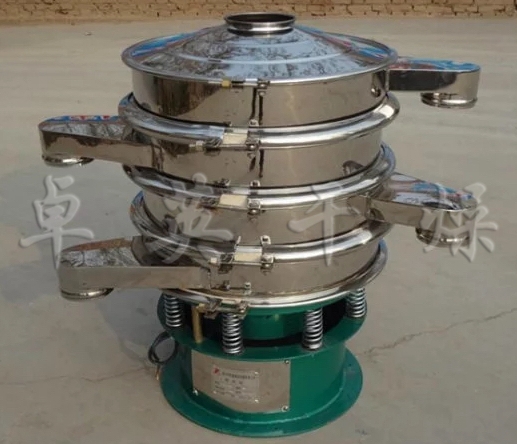

ZS Series Vibrating Screen rou
ZS Series Vibrating Screen rou
Detailed description
Principle:
● ZS series of layered screen for assembly-line, is the ratio of particle size ranging from a continuous discharge of an ideal screening device.
● The machine consists of hopper, vibration chamber and coupling and motor. Oscillation indoor eccentric wheel, rubber cushion, spindle, bearings and other components. Adjustable eccentric weight conveyed by motor to the spindle centerline, the imbalance, the centrifugal force, the intensity of change in the sieve material form vortex. Amplitude of the hammer can be adjusted according to different materials and screen adjustments.
● machine compact, small size, no dust, low noise, high quality, low energy consumption, mobile, and easy maintenance.
Technical parameters:
Model
Production capacity (kg/h)
Mesh sieve (mesh)
Electric power (kw)
Spindle speed (r/min)
Dimensions(mm)
Weight (kg)
ZS-350
60-500
12-200
0.55
1380
540×540×1060
100
ZS-515
100-1300
12-200
0.75
1370
710×710×1290
180
ZS-650
180-2000
12-200
1.50
1370
880×880×1350
250
ZS-800
250-3500
5-325
1.50
1500
900×900×1200
300
