How it works:
Mainly by two-dimensional mixer drum, swing frame, frame three major sections. Switch cartridges in the swing rack, two by four wheel gear wheel supported by its axial position. In the four support rollers, the two drive wheels powered by the rotation system to make the cylinder rotate, swing-by a group of institutions to drive the crank lever, crank lever body mounted on the rack, swing frame by a bearing components support the rack.

Features:

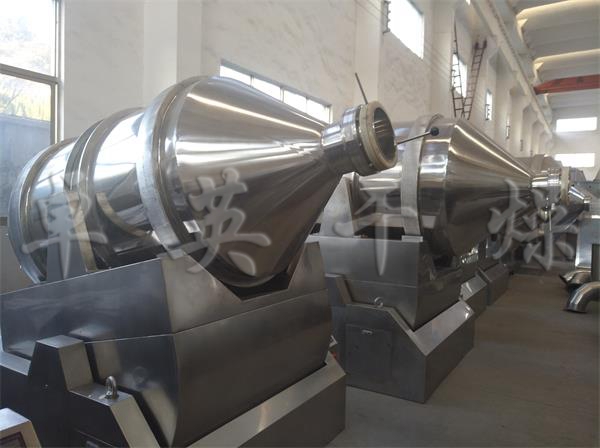

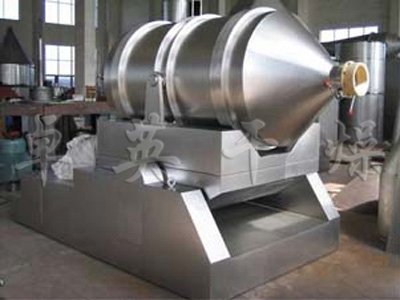

EYH Two-dimensional mixing drum machine can make two motions at the same time, one for the drum's rotation, the other for the rotor with swing-swing. Was mixed with the material in the rotor tube drum rotation, flip, mix the same time, the swing and with the drum back and forth about the mixing movement occurred in the two movements together, the material in a short period of time fully mixed. EYH-dimensional mixer suitable for all powder, a mixture of granular materials.

Model

Barrel capacity (L)

Overall dimensions (X×Y×Z×Z)(mm)

Total weight (kg)

Barrel Weight (kg)

EYH-60

60

36

18

50

0.4

700×730×1100×990

115

15

EYH-150

150

90

45

37

1.15

800×1050×1450×1340

190

50

EYH-300

3000

180

90

30

1.15

900×1350×1550×1400

340

60

EYH-600

600

360

180

23.6

3

1170×1640×2050×1910

1150

140

EYH-800

800

480

240

19.8

3

1320×1950×2150×2000

1600

200

EYH-1000A

1000

600

300

19.8

3

1300×2980×1890×1766

1700

240

EYH-1500A

1500

900

450

16.2

4.4

1500×3195×2150×2008

2000

320

EYH-2000A

2000

1200

600

16.2

7.4

1660×3305×2255×2120

2600

430

EYH-3000A

3000

1800

900

13.8

11

1860×3860×2570×2420

3500

620

EYH-4000A

4000

2400

1200

12.8

13

2010×4100×2755×2550

4100

700

EYH-6000A

6000

3600

1800

11.2

18.5

2280×4965×3172×2935

6100

1100

EYH-8000A

8000

4800

2400

10.4

22

2500×5200×3655×3200

7900

1450

EYH-10000A

10000

6000

3000

9

30

2600×5500×3750×3400

9500

1650

EYH-12000A

12000

7200

3600

7

30

3050×4850×4460×4090

10000

1800

EYH-15000A

15000

9000

4500

6

50

3100×5600×4700×4200

11000

2000

EYH-20000A

20000

12000

6000

6

60

3600×6100×5000×4500

12000

2500
