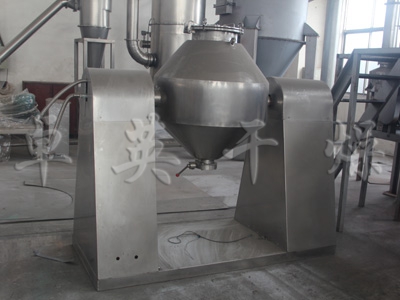

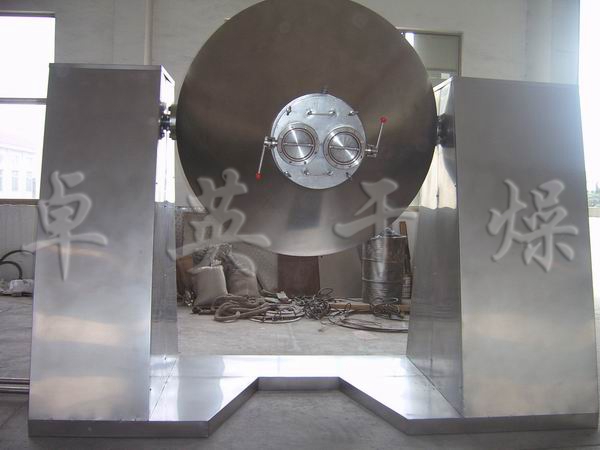

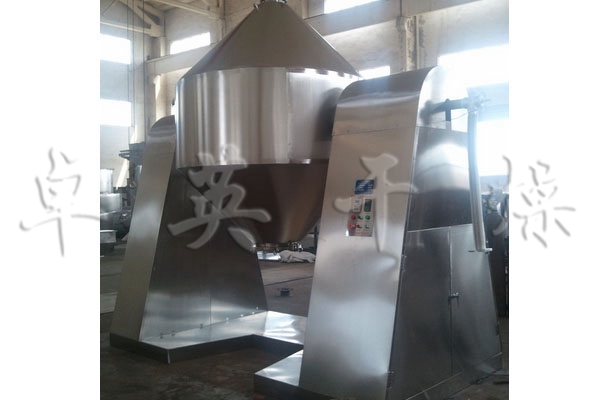

SZH Series double cone mixer

SZH Series double cone mixer

This machine is suitable for pharmaceutical, chemical, food, building materials and other ...

Detailed description

Application:
This machine is suitable for pharmaceutical, chemical, food, building materials and other industries powder, a mixture of granular materials.

Features:
The unit will lose powder or granular material container workers plus expected bipyramid, with the capacity continues to rotate, the material in the container complex impact exercise to achieve uniform mixing.
Local energy saving, easy operation, labor intensity at the end, the efficiency is higher.

Parameter:

Model	180	300	500	1000	1500	2000	2500	3000	4000
Total volume (m³)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0
Production capacity (kg / batch)	40	60	100	200	300	400	500	600	800
Mixing time (min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	6-10	6-10
Cylinder speed (rpm)	12	12	12	12	12	12	12	7.8	7.8
Power (kw)	1.1	1.1	2.2	4	4	7.5	7.5	7.5	11
Dimensions(mm)	1400×800×1850	1680×800×1850	1910×800×1940	2765×1500×2370	2960×1500×2480	3160×1900×3500	3386×1900×3560	4450×2200×3600	4750×2500×3680
Rotary overall height (mm)	1850	1850	1950	2460	2540	3590	3650	3700	3730
Weight(kg)	280	310	550	810	980	1500	2150	2500	3200
