V series high efficiency mixe

V series high efficiency mixe

Mobility of the machine for better dry powder, a mixture of granular materials; Formed by ...

Detailed description

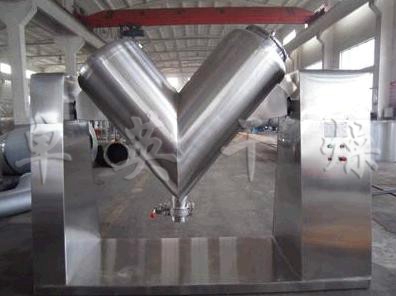

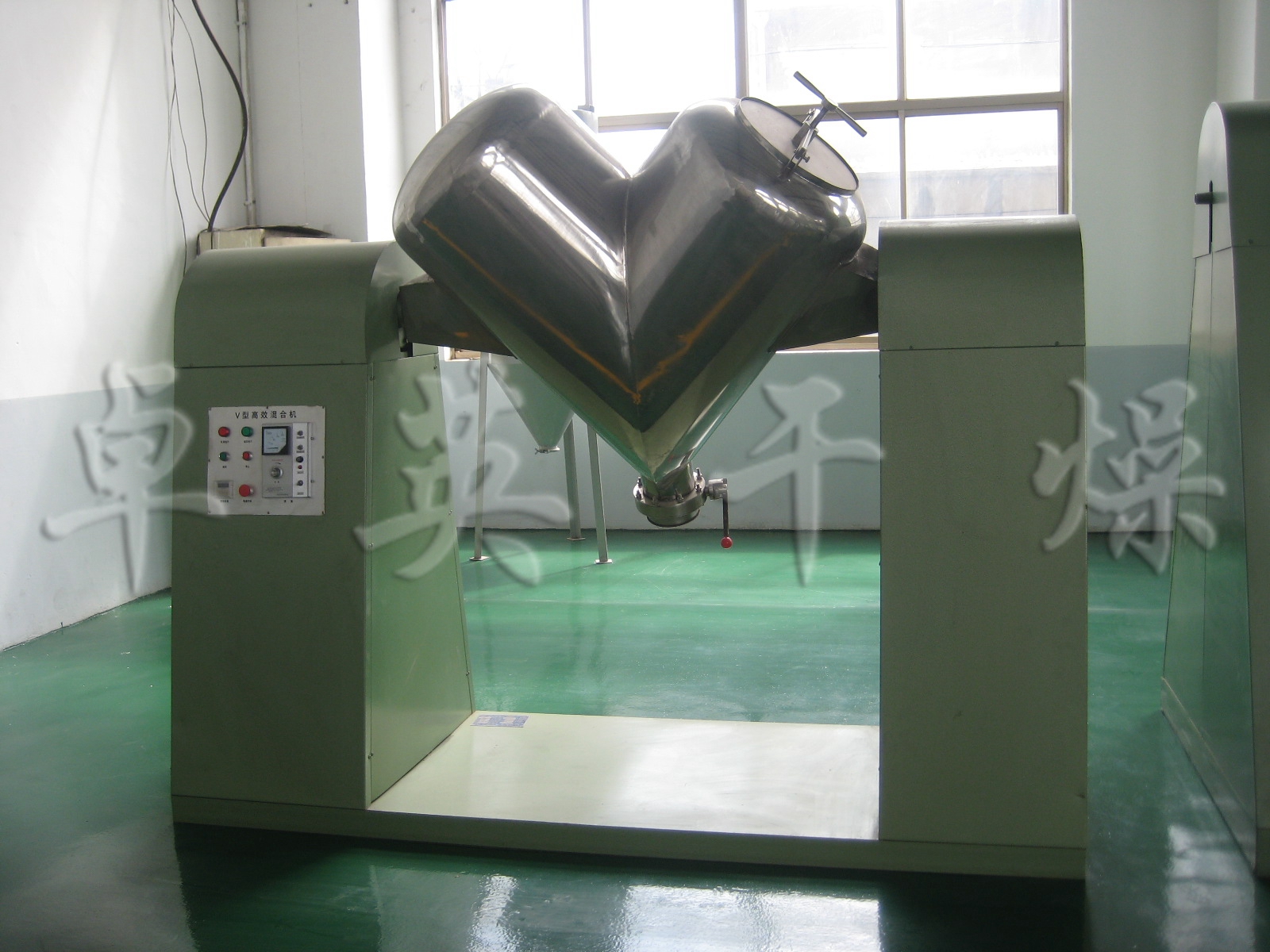

V series high efficiency mixer

Features:
Mobility of the machine for better dry powder, a mixture of granular materials;
Formed by two asymmetric cylinder, the material can be used for vertical and horizontal direction of flow, degree of mixing up to 99%;
The machine can use a vacuum suction, operating under the state seal, the internal non-transmission, clean, sanitary no dead ends, in line with GMP requirements.

Technical parameters:

model	Total volume (m³)	load factor	Maximum loading capacity (L)	A	B	C	D	E	F	G	H	Cylinder speed (rpm)	Motor (kw)	Weight (kg)	Material with a vacuum pump with vacuum pump models
model	Total volume (m³)	load factor	Maximum loading capacity (L)	Length (mm)	Width (mm)	center height (mm)	Inlet diameter (mm)	Discharge port diameter (mm)	Discharge port height (mm)	Turning height (mm)	Turning diameter (mm)	Cylinder speed (rpm)	Motor (kw)	Weight (kg)	Material with a vacuum pump with vacuum pump models
V-0.1	0.1	0.4	40	1900	800	1190	φ250	φ80	650	1730	φ1080	15	1.1	180	W₂
V-0.2	0.2	0.4	80	2010	850	1440	φ300	φ100	750	2230	φ1480	15	1.5	250	W₂
V-0.3	0.3	0.4	120	2220	900	1470	φ300	φ100	750	2290	φ1540	15	1.5	350	W₂
V-0.5	0.5	0.4	200	2400	950	1510	φ300	φ150	750	2370	φ1620	15	1.5	550	W₂或SK-1.5
V-1.0	1.0	0.4	400	2800	1000	1660	φ400	φ150	750	2580	φ2130	12	3.0	1000	W₃或SK-3
V-1.5	1.5	0.4	600	3000	1100	1750	φ400	φ200	750	2580	φ2400	10	4.0	1100	W₃或SK-3
V-2.0	2.0	0.4	800	3200	1200	2000	φ400	φ200	750	3350	φ2500	10	5.5	1500	W₃或SK-3
V-2.5	2.5	0.4	1000	3400	1300	2140	φ400	φ200	750	3800	φ2880	8	7.5	1700	W₄或SK-6
V-3.0	3.0	0.4	1200	3600	1400	2200	φ400	φ200	750	3850	φ3000	6	7.5	1800	W₄或SK-6
