Detailed description

Description:
First, the heat source with steam, electricity, far infrared, gas-electric dual-use for users to choose
Second, the temperature: steam heating 50-130 ℃, 140 ℃ maximum
Third, electricity, far infrared temperature 50-300 ℃, can be equipped with automatic control system or computer control system for the user to select
Fourth, the commonly used steam pressure 0.2-0.8mpa (2-8kg/cm2)
Fifth, with electric heating type according to a calculation of 15kw, practical 5-8kw / h
Sixth, that the special requirements when ordering
Seven, non-standard oven for Price
Eight, temperature greater than or less than 140 ℃ 60 ℃, to indicate when ordering

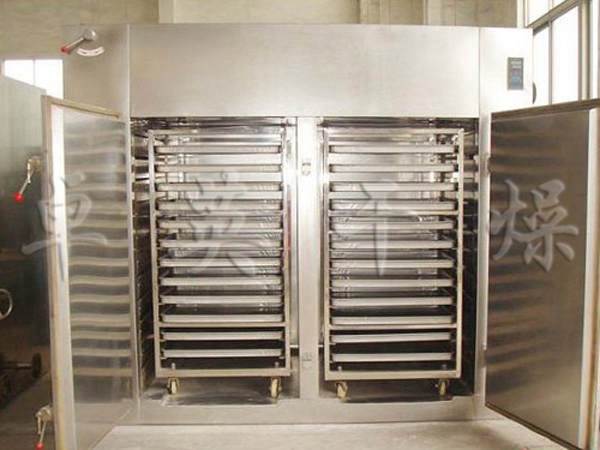

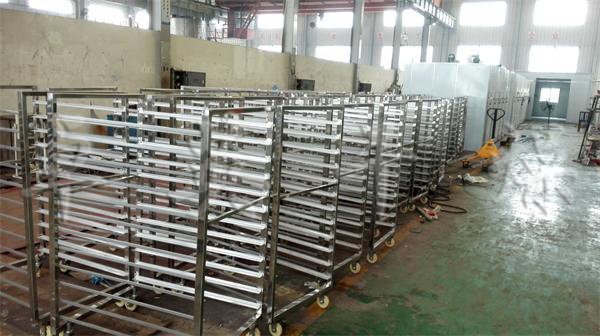

Nine, the factory car factory drying, baking tray size uniform, interchangeable
X. baking tray size: 460X640X45mm

Overview:

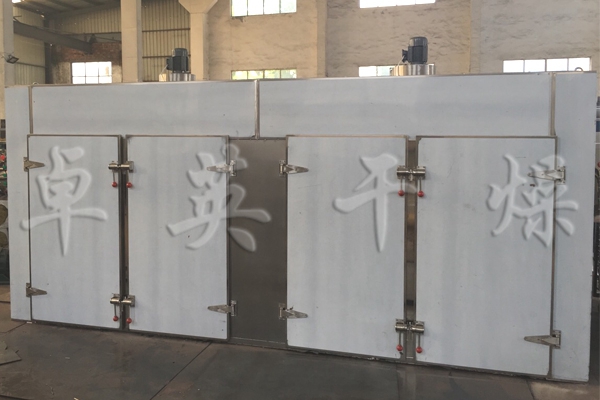

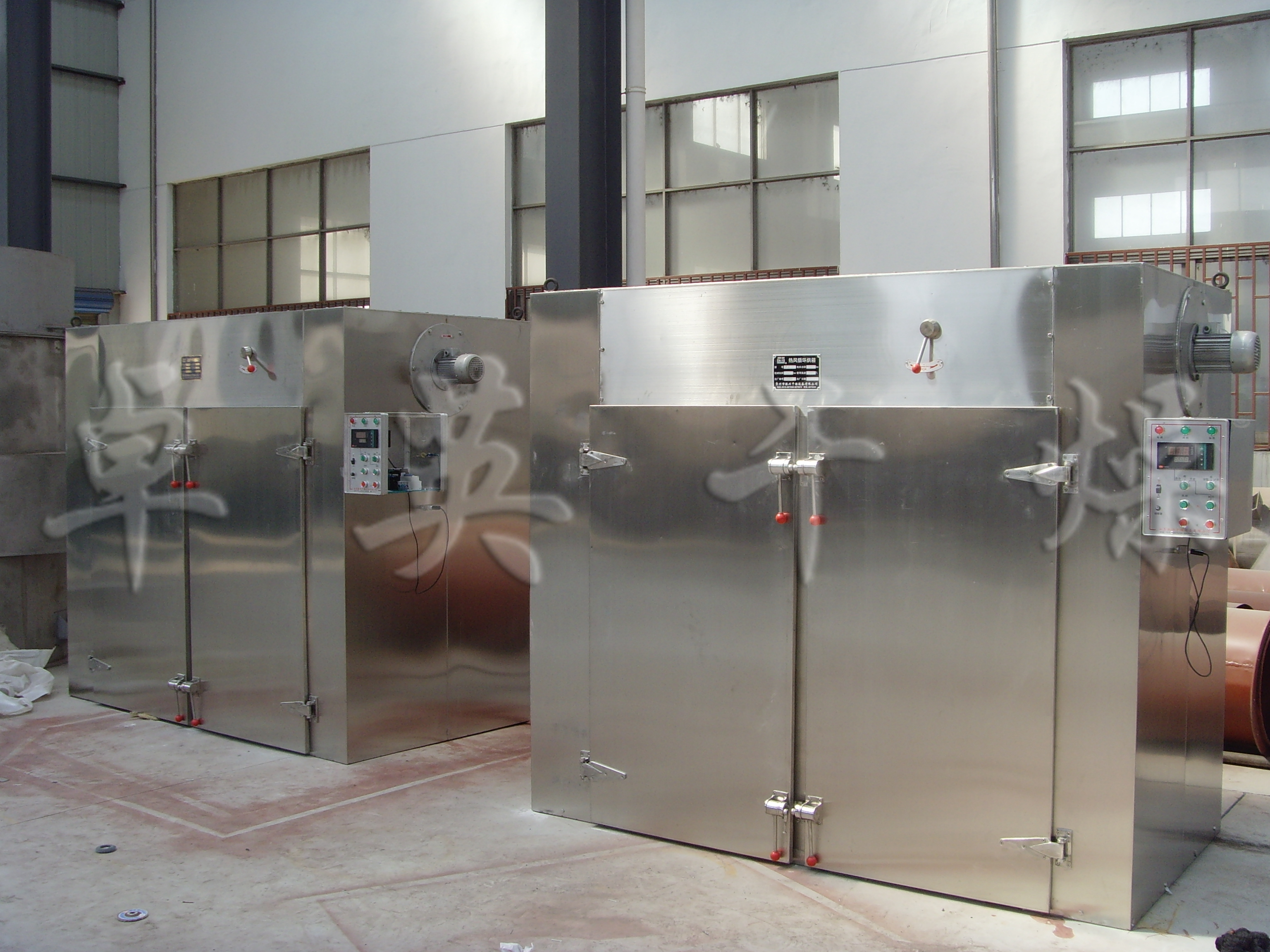

CT-C series hot air circle oven is equipped with low noise axial flow fan and automatic temperature control system, the closed loop system, the thermal efficiency of the oven drying room from the traditional 3-7% to the current 35 to 45% , the maximum thermal efficiency up to 50%. CT-C series hot air circle oven design success, so the hot air circulating oven has reached the advanced level. Save a lot of energy for our country, improve the economic efficiency of enterprises. 1990 issued by the State Pharmaceutical Administration industry standard, uniform model RXH.

Application:
For the pharmaceutical, chemical, food, agricultural products, aquatic products, light industry, heavy industry materials and products for heating and solidification, drying dehydration. Such as bulk drugs, herbs, Chinese Herbal Medicine, extract, powder, granule, powder, water pills, bottles, pigment dyes, dehydrated vegetables, dried fruits, sausages, plastic resin, electric elements, baking and so on.

Features:
Most of hot air inside the loop, high thermal efficiency, energy conservation. Use of forced ventilation, with adjustable air inside the board, uniform drying, heat can be steam, hot water, electricity, far infrared, a wide choice. Machine noise, balanced operation. Temperature-controlled, easy installation and maintenance. Wide range of applications, a variety of materials can be dried, drying equipment is common.

Technical Data Sheet：
