Detailed description

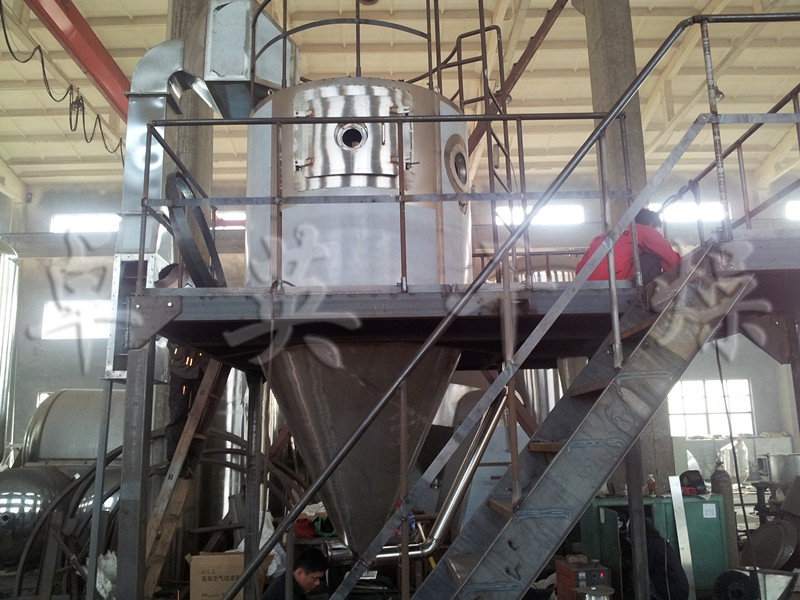

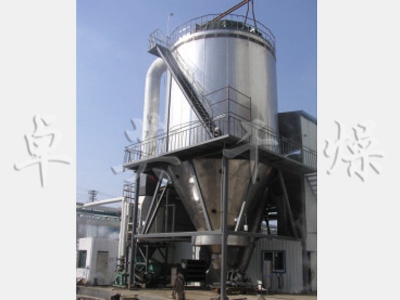

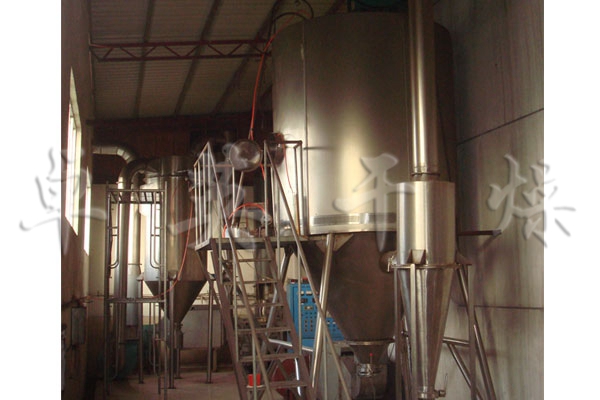

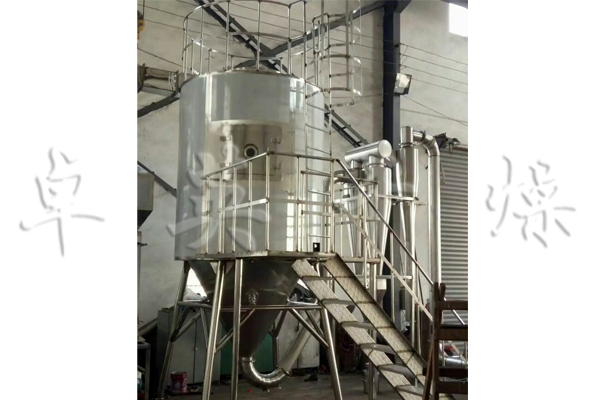

Overview: Machine with full closed-form, all parts are made of stainless steel, with three cleaning devices, filtered air of 100,000 Class A requirements. Simplified and top with cold-wall installations, the wall temperature <80 ℃, the material does not stay on the wall coking deterioration phenomenon, greatly increasing the collection rate of powder (up to 95%), and will not produce the phenomenon of mixing drugs and stick wall phenomenon. Basic principle: Herbal extract high-speed centrifugal spray drying equipment is a centrifugal spray drying technology in specific applications, but also allows high-speed centrifugal spray material dispersed into a mist, and full access to the heated air to complete the instant drying to form a dry powder product unit. Chinese extract special drying machine is designed to solve, Chinese medicine extract spray dryer and fluid group of plants, it addresses the material in the original LPG high speed spray dryer dried extract of traditional Chinese medicine appears in the following situations: 1 stick wall material, powder low income; (2) the material in the wall to stay a long time, resulting in deterioration of materials coking phenomenon 3 difficult to clean, does not meet the GMP requirements; 4 production is low: LPG-150-type spray dryer, with its output can only handle 50-60Kg / h liquid feed. Given the above situation, I plant extract according to the material nature of traditional Chinese medicine and Chinese medicine extract process to design a dryer problem, the dried material color is good, not bad, greatly improve the plant's economic benefits, traditional Chinese medicine extract speed with LPG centrifugal spray dryer has the following characteristics: 1 using three air purification, the inlet air to reach 100 000 requirements; (2) using a cold-wall installations, the wall temperature reaches 80 ℃, the material does not stay on the wall coking; 3 the size of the original LPG centrifugal spray of 3.5 times the standard. 4. The fast-opening washing device for multi-product production requirements 5 dust with a wet dust, so dust-free to go out, meet environmental requirements; 6. Using air sweeping device, the effect is more satisfactory; 7. Atomizer with frequency control. 8 using PLG control, program control system screen display; 9 can be equipped with flushing devices; 10 can be closed with the use of dry air transportation. Technical parameters:
