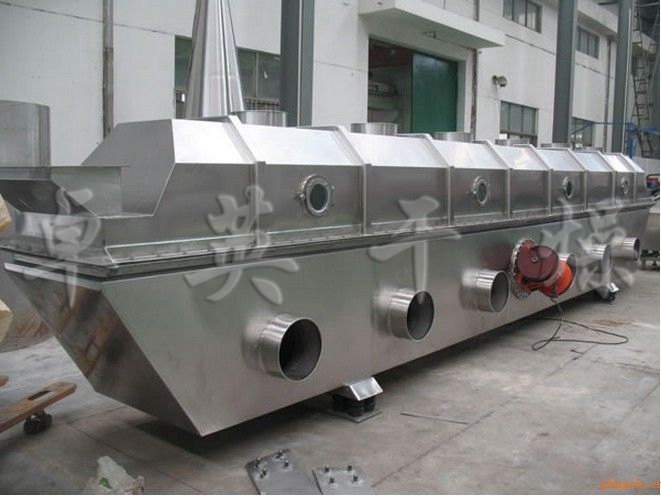

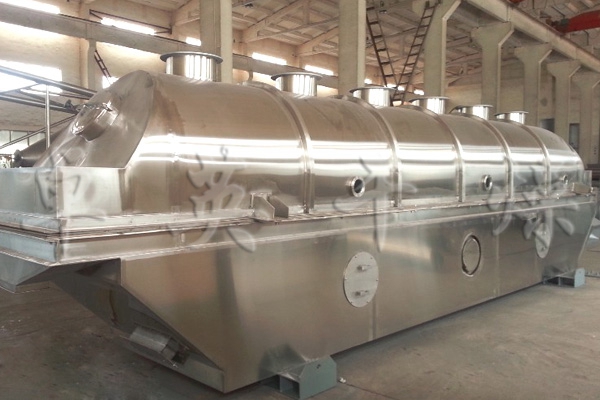

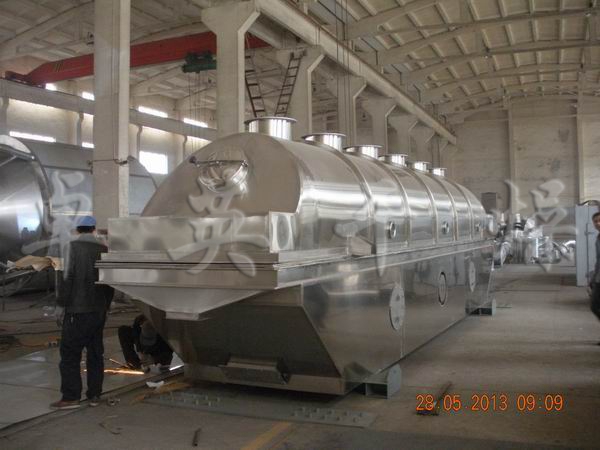

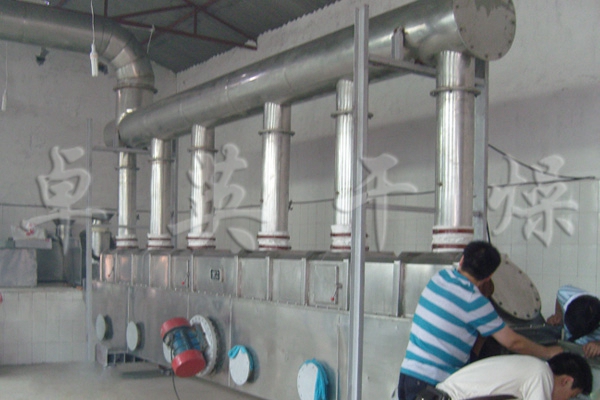

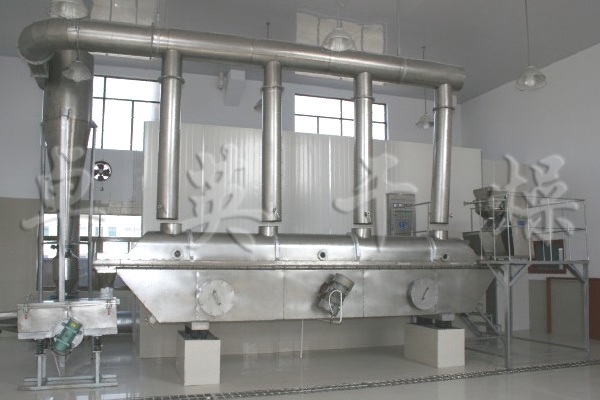

Principle of Work 　　Raw material is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out heat exchanging with damp raw material. Then the damp air is exhausted out through cyclone separator and duster, and the dry raw material is discharged through discharge outlet. Scope of application 　　1、Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid and so on. 2、Foodstuff and construction material industries: distiller's grains, monosodium, edible sugar, edible salt, mine residue, bean, seeds and so on. 3、Also can be used for material cooling, humidification etc.

Features 　　1、 Raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary dryer ,the energy can be saved about 30%. 2、 The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life. 3、 The fluidized state is stable and no dead angle and phenomenon of broken out. 4、 It is good in regulation and wide in suitability. The thinckness and moving speed in the machine and the amplitude change speed of the material can be stepless regulated. 5、 It is small for damaging the surface of raw material. The machine can be used for drying materials that are easy broken. The drying effect can not be affected even materials gave anomalous shape. 6、 It is effective to prevent from cross pollution between raw material and air because the equipment adopts fully closed structure. So that keep the environment clean. structure and property

Technical Parameters

type A B C D E F weight(kg) ZLG3×0.30 3000 300 1350 900 430 1650 1250 ZLG4.5×0.30 4500 300 1350 900 430 1650 1560 ZLG4.5×0.45 4500 450 1550 950 430 1700 1670 ZLG4.5×0.60 4500 600 1650 950 430 1700 1910 ZLG6×0.45 6000 450 1650 950 430 1700 2100 ZLG6×0.60 6000 600 1700 1000 500 1700 2410 ZLG6×0.75 6000 750 1850 1000 600 1850 2340 ZLG6×0.9 6000 900 2000 1000 600 1850 3160 ZLG7.5×0.6 7500 600 1850 1000 600 1850 3200 ZLG7.5×0.75 7500 750 2000 1000 600 1850 3600 ZLG7.5×0.9 7500 900 2100 1000 600 1850 4140 ZLG7.5×1.2 7500 1200 2500 1150 800 2050 5190

type fluidized-bed(M2) Inlet air temperature(℃) outlet air temperature (℃) evaporate capacity (kg/h) vibration motor type power (kw) ZLG3×0.30 0.9 70-140 40-70 20-35 ZDS31-6 0.8×2 ZLG4.5×0.30 1.35 70-140 40-70 35-50 ZDS31-6 0.8×2 ZLG4.5×0.45 2.025 70-140 40-70 50-70 ZDS32-6 1.1×2 ZLG4.5×0.60 2.7 70-140 40-70 70-90 ZDS32-6 1.1×2 ZLG6×0.45 2.7 70-140 40-70 80-100 ZDS41-6 1.5×2 ZLG6×0.60 3.6 70-140 40-70 100-130 ZDS41-6 1.5×2 ZLG6×0.75 4.5 70-140 40-70 120-140 ZDS42-6 2.2×2 ZLG6×0.9 5.4 70-140 40-70 140-170 ZDS42-6 2.2×2 ZLG7.5×0.6 4.5 70-140 40-70 130-150 ZDS42-6 2.2×2 ZLG7.5×0.75 5.625 70-140 40-70 150-180 ZDS51-6 3.0×2 ZLG7.5×0.9 6.75 70-140 40-70 160-210 ZDS51-6 3.0×2 ZLG7.5×1.2 9 70-140 40-70 200-260 ZDS51-6 3.0×2
