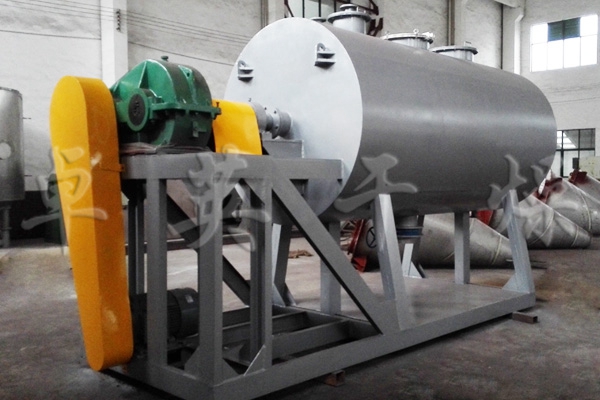

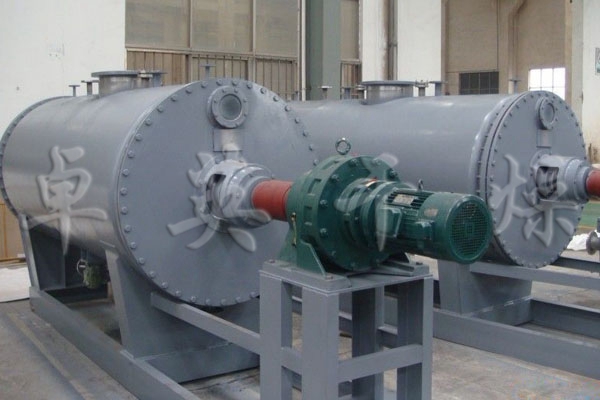

Application scope 1、It’s especially for drying materials in medicine, food and chemical industry equipment 2、pulpous, pasty and powdery materials 3、Thermal sensitive materials need low temperature drying 4、oxidizable, explosive, stimulated and excessively toxic materials 5、organic solvent needs to be recovered Principle 1、Being adapted the heating way of jacket and inner stirring at the dame time, its heat conducting area is large and its heat efficiency is high. 2、Being installed stirring in the machine. it makes raw material in cylinder form the state of continuous circle inside the cylinder, so the uniformity* To be heated of raw material is raised greatly. 3、Being installed stirring in the machine. Thus pulpous, pasty and mushy materials can be dried smoothly.

parameters

item		spec
name	unit	ZPG-500	ZPG-750	ZPG-1000	ZPG-1500	ZPG-2000	ZPG-3000	ZPG-4000	ZPG-5000
Working volume	L	300	450	600	900	1200	1800	2400	3000
Heating area	m2	6	7.6	9.3	12.3	14.6	19.3	25.7	32.17
Stirring speed	r/min	6-30 stepless speed regulating
power	kW	4	5.5	5.5	7.5	11	15	22		30
Design pressure of jacket	MPa	0.3
Pressure in the cylinder	MPa	-0.096-0.15
